Mounting Our Cubes on the Wall
If you ordered cubes with wall mounting, the rails are already attached to the cube and are delivered together with the mounting plate(s). Use a spirit level to mark a straight line on the wall. Use the included wall anchors and drill the holes for them. Screw the mounting plate(s) to the wall using the screws provided. Hang the cube by attaching the rail to the mounting plate.
Required accessories: If the type of wall you have requires different wall anchors, select them according to your needs and use appropriate screws with a head size of 4.5 x at least 40 mm.
Mounting Our Cubes on the Wall
If you ordered cubes with wall mounting, the rails are already attached to the cube and are delivered together with the mounting plate(s). Use a spirit level to mark a straight line on the wall. Use the included wall anchors and drill the holes for them. Screw the mounting plate(s) to the wall using the screws provided. Hang the cube by attaching the rail to the mounting plate.
Required accessories: If the type of wall you have requires different wall anchors, select them according to your needs and use appropriate screws with a head size of 4.5 x at least 40 mm.

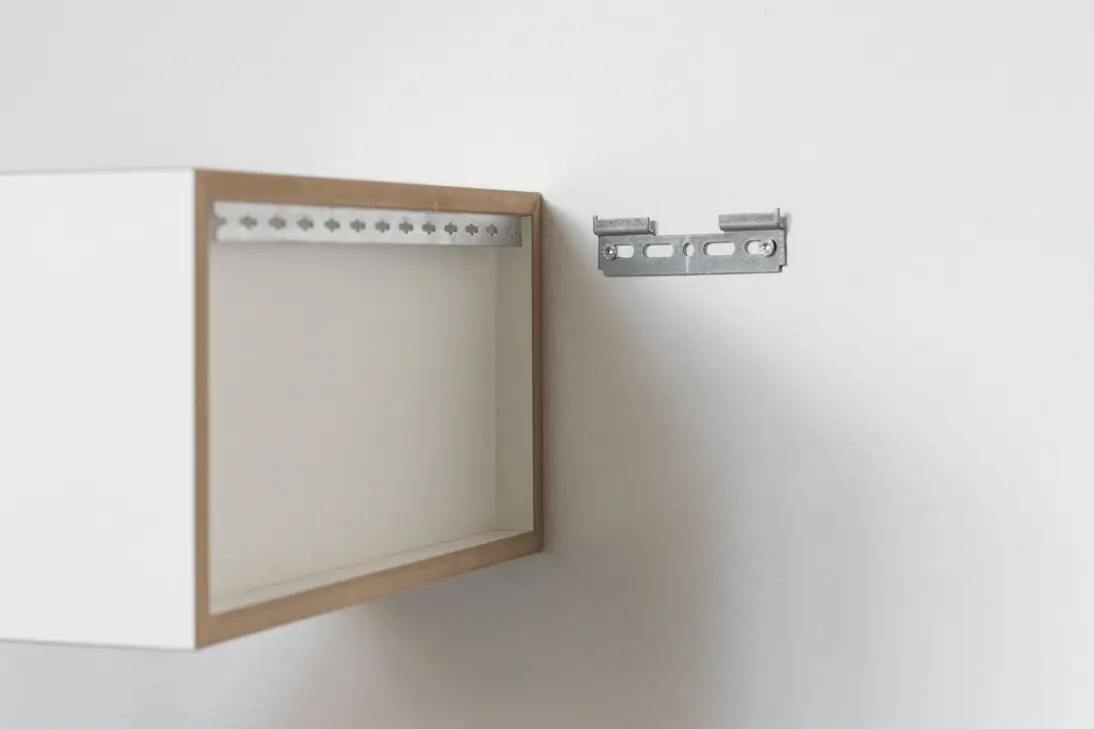

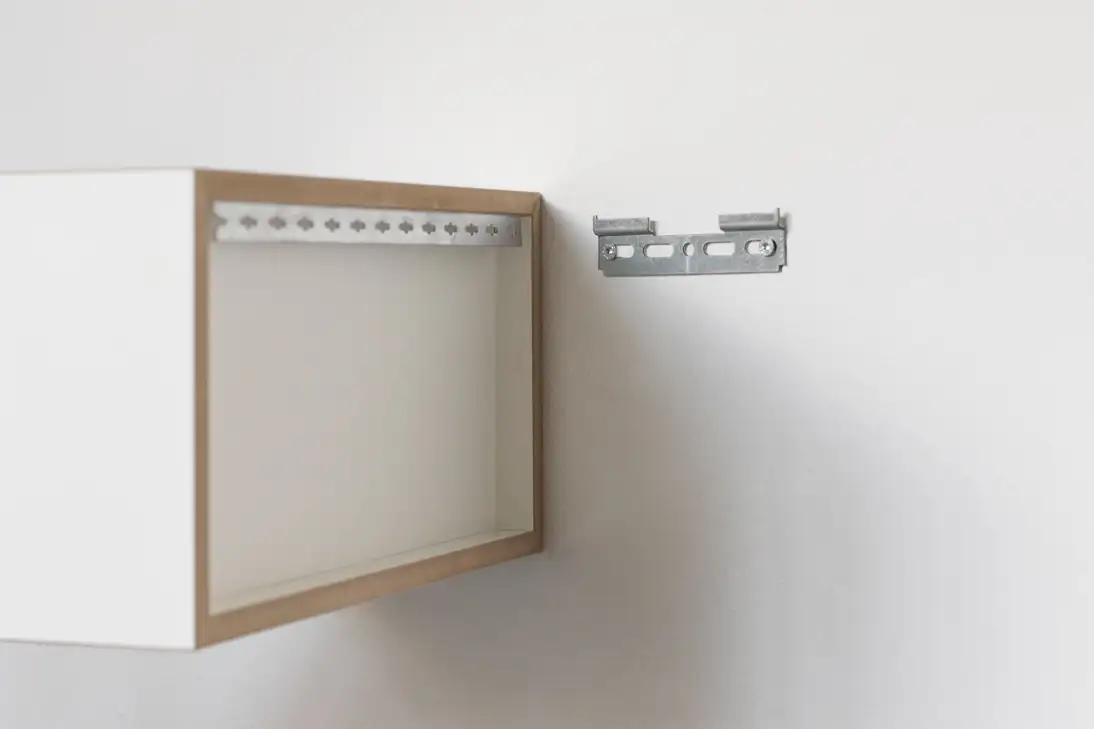

One mounting plate
For these modules you need one mounting plate, which is best placed in the center:

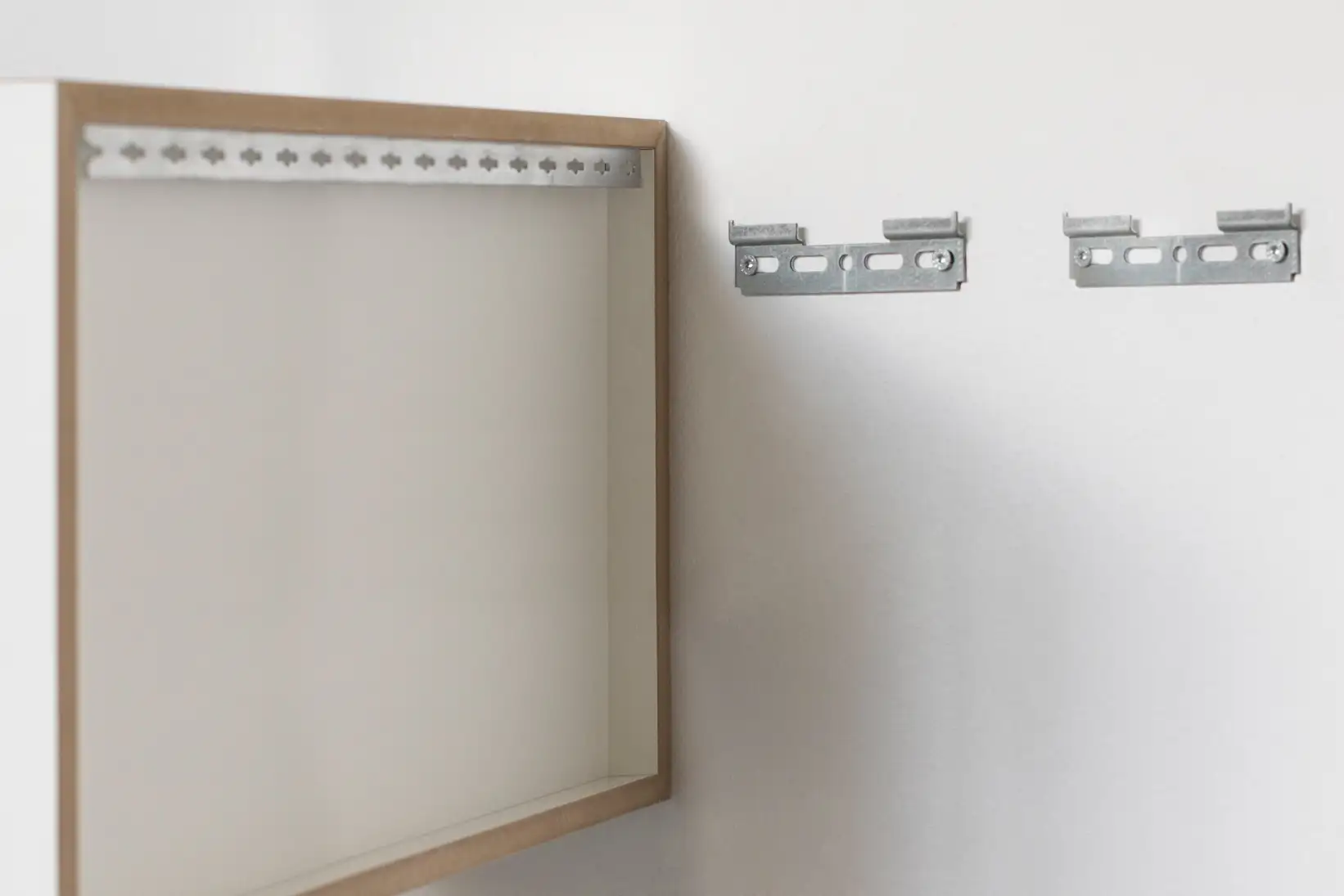

Two mounting plates
For these modules you need two mounting plates each, which are best placed close to the edge:
→ 1:1 module, full depth and 1:1 module, half depth.
Two mounting plates
For these modules you need two mounting plates each, these are best placed close to the edge:
→ 1:1 module, full depth and 1:1 module, half depth.
Note: For hanging modules at full depth, we assume a maximum weight of 12 kg for the 1:1 module and 5 kg for the 2:1 module. One door weighs approx. 1 kg.
